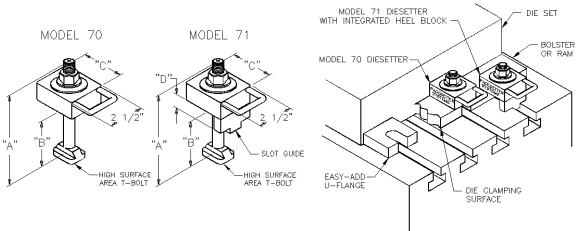

A versatile 1/8 turn clamp for use with ledge or slotted die mounting.  Easy load clamp arm handles very high load capacities and keeps clamps in position for easy interface with dies.  Available for 5/8 thru 1.0 in. T-Slot sizes.  Permanent assembly prevents loss of any clamp components.  An excellent choice for any clamping application.

Model
No.

T-Slot
Bolt
Size

Load Capacity



Series        Load

"A"
T-Slot
Bolt
Length

"B"
Grip Length - Total
Including T-Slot
Throat Height
Min            Max

Hex Nut Size
(
Thread Size)

Torque
Ft. Lbs.


"C"
Clamp
Arm
 Length

"D"
(Mod 71 only)
Height of Die
 Clamping Ledge

70

5/8

5/8
Gold


8 Tons
*


3 1/2
4
5

0.9
1.4
2.3

1.9
2.4
3.4

1 1/4 Hex
(5/8-11 Thd.)


80



2 1/2



Specified
by
User

70

3/4

3/4
Blue

6 1/2 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 1/4 Hex
(3/4-10 Thd.)



125




3 1/2




Specified
by
User


70

3/4

3/4
Gold

15 Tons
*



4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 1/4 Hex
(3/4-10 Thd.)



125




3 1/2




Specified
by
User


70

1"

1" Blue

8 1/2 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(7/8-9 Thd.)



150




3 1/2




Specified
by
User


70

1"

1" Red

10 1/2 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(1'-8 Thd.)



150




3 1/2




Specified
by
User


70

1"

1" Gold

18  Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(7/8'-9 Thd.)



150




3 1/2




Specified
by
User


70

1"

1" Green

22 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(1'-8 Thd.)



150




3 1/2




Specified
by
User


* Load capacity of model 71 is 60% of that shown above

A versatile clamp for general die clamping applications.  High reliability, large grip range make this clamp an excellent choice.

View a demonstration!
Play Video

Model 325
